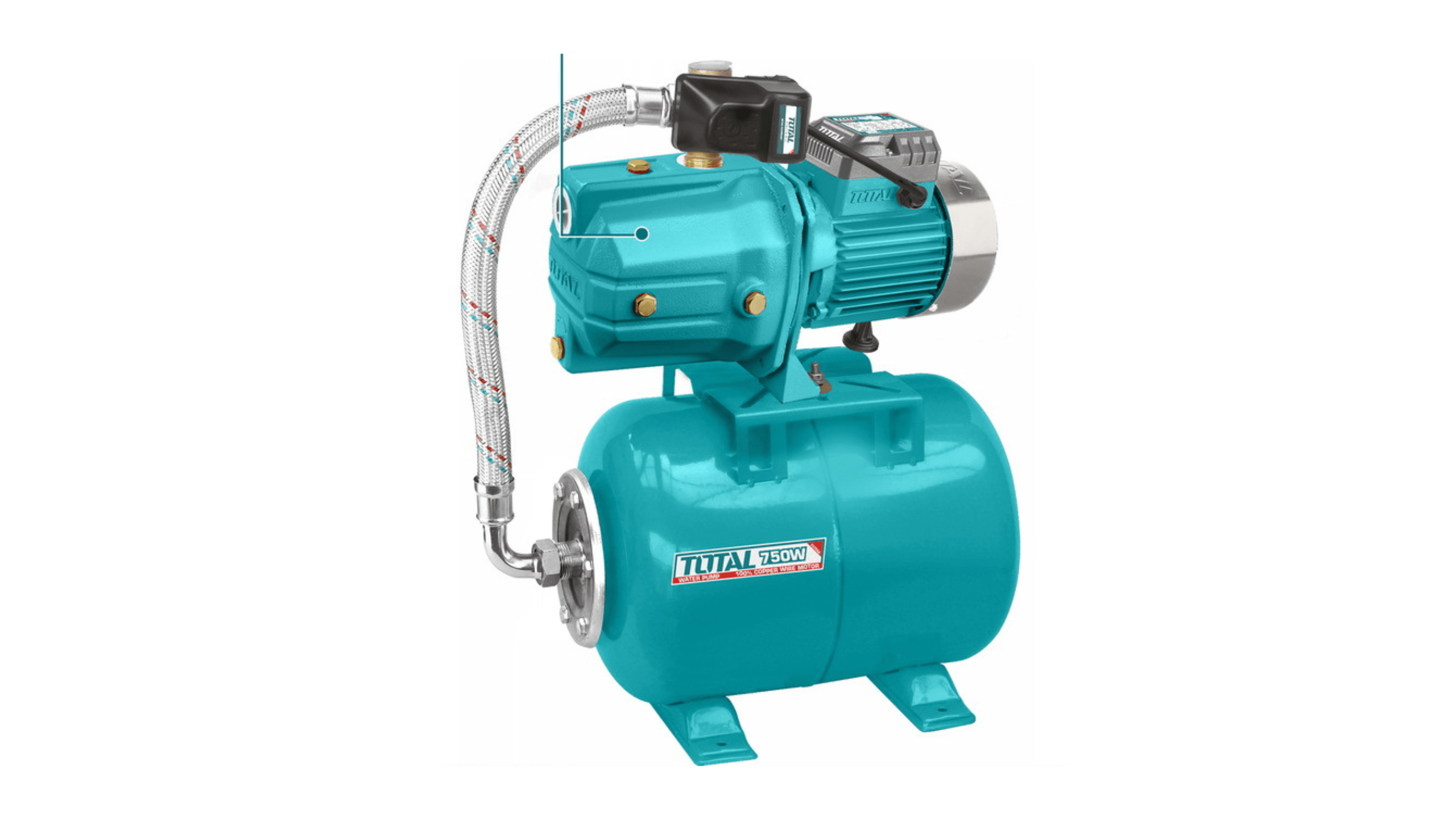

750W Total Automatic Self-Priming Jet Pump TWP47506 – High-Pressure Water Pump Solution at CETECH Ghana
The 750W Total Automatic Self-Priming Jet Pump (Model TWP47506) is a high-performance 1.0HP electric water pump designed to provide strong, reliable water pressure for homes, shops, farms, and small commercial properties across Ghana. With self-priming capability up to 9 meters and automatic start/stop functionality, this pump ensures consistent water supply from shallow wells, overhead tanks, or low-pressure municipal systems. CETECH Ghana offers this pump both online and in-store, providing professional-grade performance, long service life, and robust durability tailored to Ghanaian conditions.
What Is a Self-Priming Jet Pump?
A self-priming jet pump is a surface-mounted pump that uses suction and pressure dynamics to lift water from shallow sources and deliver it at high pressure. Unlike standard centrifugal pumps, a self-priming jet pump:
- Can lift water from depths of up to 9 meters
- Maintains consistent pressure for taps, showers, and small irrigation systems
- Automatically regulates operation through integrated pressure control
- Works efficiently in domestic, agricultural, and light commercial settings
The 750W Total Automatic Self-Priming Jet Pump combines high suction capacity, strong head performance, and automatic pressure control into a compact, efficient system ideal for Ghanaian homes, farms, and businesses.
Product Overview – Total TWP47506 Jet Pump
The Total TWP47506 is engineered for local Ghanaian conditions where:
- Municipal water pressure is inconsistent or low
- Overhead tank systems are commonly used
- Boreholes or shallow wells serve as water sources
- Reliable water supply and pressure stability are essential
This jet pump functions as:
- A domestic water pump machine for households
- A water pump booster for improved tap and shower pressure
- A high-pressure water jet pump for commercial and light industrial applications
- A dependable electric water pump for continuous daily use
Technical Specifications
| Specification | Details |
|---|---|
| Type | Automatic Self-Priming Jet Pump |
| Model | TWP47506 |
| Voltage | 220–240V ~ 50Hz |
| Rated Power | 750W (1.0HP) |
| Maximum Head | 51 meters |
| Maximum Flow Rate | 55L/min |
| Maximum Suction Depth | 9 meters |
| Pipe Diameter | 1″ × 1″ |
| Motor Type | Copper wire motor |
| Shaft Material | Stainless steel (304 + 45#) |
| Body Treatment | Electrophoresis anti-corrosion coating |
| Function | Automatic start/stop pressure control |
This construction ensures reliable operation in Ghana’s humid coastal regions, dusty inland areas, and rural environments.
See our available Self-Priming Jet Pump options at CETECH Ghana
Understanding Performance: 750W and 1.0HP Explained
750W (1.0HP) Power Output
- Ideal for homes and shops, including 1–3 storey buildings
- Strong enough to maintain overhead tank filling
- Supports multiple taps and shower heads simultaneously
- Provides reliable flow for kitchen sinks, laundry, and small irrigation systems
Maximum Head – 51 Meters
- Head defines the maximum vertical height water can be pumped
- At 51 meters, this pump efficiently supplies water to upper floors, boosts tank pressure, and supports moderate vertical pumping requirements
Maximum Flow Rate – 55L/min
- Ensures quick overhead tank filling
- Maintains steady shower and tap pressure
- Supports multi-point water distribution across small to medium facilities
Self-Priming Function
- Eliminates the need for manual priming
- Automatically removes air from suction lines
- Allows pumping to start even after temporary dry conditions
- Perfect for shallow wells, ground reservoirs, and underground storage tanks
Automatic Pressure Control
- Starts the pump when water is demanded
- Stops when demand ceases
- Maintains stable pressure throughout the system
- Reduces electricity consumption and mechanical wear, extending pump lifespan
Material Composition and Durability
Durability is crucial for Ghanaian environments. The TWP47506 incorporates:
Copper Wire Motor
- High efficiency with low heat generation
- Superior to aluminum-wound alternatives
- Longer operational lifespan for consistent performance
Stainless Steel Shaft (304 + 45#)
- Corrosion-resistant, ideal for water handling
- Provides strength and wear resistance for prolonged operation
Electrophoresis Anti-Corrosion Coating
- Protects against rust in humid or coastal regions
- Resistant to environmental wear and dust exposure
- Ensures reliability in long-term usage
These features guarantee that the pump withstands Ghana’s variable weather, including humid coastal zones, dusty inland areas, and high-temperature regions.
Jet Pump Working Principle
Understanding how a jet pump works helps buyers compare options.
- The impeller generates water flow and creates a low-pressure zone at the suction inlet
- Water is drawn upward from the source and discharged at high pressure
- Unlike submersible pumps, the TWP47506 is surface-mounted and self-primes automatically
This principle allows it to function efficiently as a household booster, shallow well water pump, and irrigation pump.
Applications Across Ghana
Residential Use
- Filling overhead tanks for homes and apartments
- Maintaining stable water pressure for taps and showers
- Apartment complexes, guest houses, and small residential buildings
Construction and Industrial Sites
- Temporary water supply for building projects
- Concrete mixing and equipment cleaning
- Water transfer at small industrial facilities
Agriculture and Irrigation
- Watering small farms and vegetable gardens
- Poultry and livestock water systems
- Shallow well irrigation
Commercial Use
- Shops, salons, restaurants, and car wash stations
- Reliable water pump machine for consistent daily operations
Logistics, Warehousing, and Emergency Preparedness
- Facility cleaning and water supply
- Backup water pumping during municipal supply interruptions
Comparison With Other Pump Types in Ghana
Jet Pump vs Borehole Pump
- Jet pumps: Ideal for shallow wells (≤9m suction)
- Borehole pumps: Suitable for deep wells, installed inside the borehole
Jet Pump vs Centrifugal Pump
- Jet pumps: Self-priming with better suction lift
- Centrifugal pumps: Require priming and are less effective for pressure boosting
1.0HP vs 1.5HP Jet Pump
- 1.0HP: Perfect for households and small commercial applications
- 1.5HP: Suitable for larger buildings or higher water demand
- CETECH Ghana stocks multiple horsepower options, including 1.5 hp jet pump price alternatives
High-Pressure Performance
- Maximum head of 51m ensures strong upward water pressure
- Supports simultaneous operation of multiple taps and showers
- Provides reliable water supply for washing machines, dishwashers, and small irrigation lines
Safety and Compliance
- Automatic pressure regulation prevents continuous operation
- Copper motor reduces overheating risk
- Stainless steel shaft resists corrosion
- Electrophoresis body coating withstands humidity and dust
- Installation guidelines include grounding, pipe sizing (1″ × 1″), and suction sealing
- CETECH Ghana provides installation consultation and troubleshooting
Jet Pump Repair and Maintenance
CETECH Ghana supports full maintenance for TOTAL jet pumps:
- Pump diagnostics and troubleshooting
- Replacement parts and accessories
- Professional installation guidance
- Regular servicing advice to maximize pump life
Frequently Asked Questions (FAQs)
Q: Is this pump suitable for boreholes?
A: Suitable for shallow wells up to 9 meters. For deeper boreholes, a submersible pump is recommended.
Q: Can it work as a water pump booster?
A: Yes, it effectively boosts tap and shower pressure in homes and shops.
Q: How does it compare to foreign brands like Goulds shallow well jet pumps?
A: TOTAL provides durable performance at a more accessible price point in Ghana.
Q: What is the expected lifespan?
A: Proper maintenance ensures long-term reliability from the copper motor and stainless steel shaft.
Q: Does CETECH Ghana offer installation?
A: Yes, including supply, professional installation, consultation, and after-sales support.
Buyer Decision Framework
Before purchasing, confirm:
- Suction depth is within 9 meters
- Maximum head (51m) aligns with building height
- 750W power meets your water demand
- Compatible pipe sizing (1″)
- Stable 220–240V power supply
CETECH Ghana provides expert guidance to ensure optimal selection.
Why Buy from CETECH Ghana?
CETECH Ghana is the trusted local supplier of pumps and industrial equipment, offering:
- Online ordering and nationwide delivery
- Physical store purchases for convenience
- Bulk supply for contractors and industrial projects
- Industrial sourcing and technical consultation
- After-sales service, repair, and troubleshooting
- Genuine TOTAL products with local warranty support
Value Proposition for Ghanaian Customers
The 750W Total Automatic Self-Priming Jet Pump delivers:
- 750W (1.0HP) power output
- 51m maximum head for high-pressure water
- 55L/min flow rate for efficient distribution
- Self-priming suction depth up to 9 meters
- Automatic start/stop operation
- Copper motor and stainless steel shaft for durability
- Electrophoresis anti-corrosion body for coastal and humid areas
This makes it the ideal solution for reliable water supply and pressure stability in homes, farms, and small commercial properties across Ghana.
Quick Buyer Checklist
Choose this pump if:
- You need a self-priming jet pump for shallow wells
- You require automatic start/stop operation
- You need strong water pressure for taps and showers
- You want a water pump machine for home or commercial use
- You prefer local warranty, professional service, and expert consultation
Order the 750W Total Automatic Self-Priming Jet Pump TWP47506
Available online and in-store across Ghana, this Total TWP47506 jet pump provides a reliable, high-pressure water supply for homes, small businesses, farms, and light industrial operations. For competitive water pump machine price in Ghana, professional installation, bulk supply, and expert after-sales support, CETECH Ghana is your trusted partner for high-performance pumping solutions.
